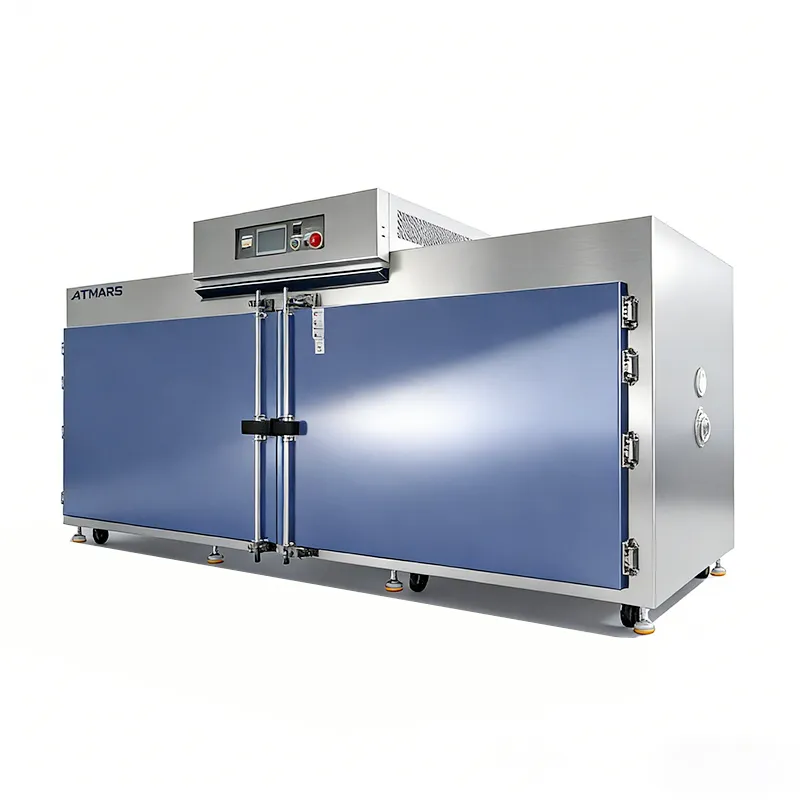

Large industrial oven (large hot air circulation oven)
Main classifications
Conventional large thermal oven
Up and down / left and right circulating air ducts, suitable for general drying, dehumidification, and curing, with the highest cost performance.
Precise large program oven
Multiple programmed temperature rises and drops, high uniformity of temperature field, used for aging tests of electronic and new energy components.
Cleanroom large oven
Built-in efficient filtration system, suitable for clean workshops, optics, and semiconductor batch baking.
Nitrogen-filled large oven
Cavity is sealed, nitrogen gas is introduced to replace oxygen, preventing oxidation of copper parts, chips, and metal parts during baking.
Tray-type large oven
Equipped with heavy-duty tracks + material trolleys, heavy objects and large batches of products can be pushed in and out, commonly used in the automotive industry.
Walk-in large oven room
Extremely large volume, allowing personnel to enter, suitable for batch baking of vehicles, large energy storage packages, and large cabinets.
Overall machine structure configuration
Cabinet shell and inner liner
Inner liner: 304 stainless steel, thick plate, resistant to temperature and corrosion; cabinet shell: cold-rolled steel plate, high-temperature spray coating; multi-layer silicic acid aluminum insulation layer, heat insulation and energy saving, outer wall at low temperature. Thick and high-temperature resistant silicone rubber whole-ring seal, reducing heat loss.
Hot air circulation system
High-power long-axis fan + multi-channel diversion design, vertical circulation up and down, large cavity ensures uniform temperature throughout the area, no dead corners, no local overheating.
Heating system
Stainless steel finned heater, stable temperature rise; uses SSR solid-state relay for contactless temperature control, small temperature fluctuation, equipped with independent over-temperature protector for dual safety protection. Control system
7-inch / 10-inch touch screen, single-stage constant temperature or multi-stage program heating, holding, and cooling; supports timing and cyclic operation; can be externally connected with a temperature recorder, data export, and remote monitoring; has over-limit sound and light alarm.
Supporting structure
Layered grid model: multi-layer stainless steel shelves, suitable for small items in large batches;
Truck track model: built-in load-bearing track, equipped with heavy-duty material truck, with a load capacity of up to several hundred kilograms;
Walk-in model can be used to place work tools and large product supports.
Optional functions
Nitrogen replacement, exhaust ventilation device, explosion-proof structure, temperature curve recording, explosion-proof door, low-temperature refrigeration composite model.
Main classifications
Conventional large thermal oven
Up and down / left and right circulating air ducts, suitable for general drying, dehumidification, and curing, with the highest cost performance.
Precise large program oven
Multiple programmed temperature rises and drops, high uniformity of temperature field, used for aging tests of electronic and new energy components.
Cleanroom large oven
Built-in efficient filtration system, suitable for clean workshops, optics, and semiconductor batch baking.
Nitrogen-filled large oven
Cavity is sealed, nitrogen gas is introduced to replace oxygen, preventing oxidation of copper parts, chips, and metal parts during baking.
Tray-type large oven
Equipped with heavy-duty tracks + material trolleys, heavy objects and large batches of products can be pushed in and out, commonly used in the automotive industry.
Walk-in large oven room
Extremely large volume, allowing personnel to enter, suitable for batch baking of vehicles, large energy storage packages, and large cabinets.
Overall machine structure configuration
Cabinet shell and inner liner
Inner liner: 304 stainless steel, thick plate, resistant to temperature and corrosion; cabinet shell: cold-rolled steel plate, high-temperature spray coating; multi-layer silicic acid aluminum insulation layer, heat insulation and energy saving, outer wall at low temperature. Thick and high-temperature resistant silicone rubber whole-ring seal, reducing heat loss.
Hot air circulation system
High-power long-axis fan + multi-channel diversion design, vertical circulation up and down, large cavity ensures uniform temperature throughout the area, no dead corners, no local overheating.
Heating system
Stainless steel finned heater, stable temperature rise; uses SSR solid-state relay for contactless temperature control, small temperature fluctuation, equipped with independent over-temperature protector for dual safety protection. Control system
7-inch / 10-inch touch screen, single-stage constant temperature or multi-stage program heating, holding, and cooling; supports timing and cyclic operation; can be externally connected with a temperature recorder, data export, and remote monitoring; has over-limit sound and light alarm.
Supporting structure
Layered grid model: multi-layer stainless steel shelves, suitable for small items in large batches;
Truck track model: built-in load-bearing track, equipped with heavy-duty material truck, with a load capacity of up to several hundred kilograms;
Walk-in model can be used to place work tools and large product supports.
Optional functions
Nitrogen replacement, exhaust ventilation device, explosion-proof structure, temperature curve recording, explosion-proof door, low-temperature refrigeration composite model.
