High-energy lithium battery testing involves inherent risks associated with thermal runaway, flammable gas release, and rapid energy discharge. A robust safety design must therefore be engineered as a systematic risk-control framework rather than a set of isolated protective features.

1. Passive Safety Design Based on Ignition Source Control

Passive safety focuses on eliminating ignition sources and ensuring structural containment under abnormal conditions.

Armored Non-Sparking Heaters
Heating elements are enclosed in stainless-steel armored sheaths with grounded insulation layers. Surface temperatures are controlled below the ignition temperature of common battery vent gases. Integrated fault-current protection prevents arc formation during electrical failures.
This design minimizes ignition risk even under vibration or component degradation.

PTFE-Coated Circulation Blowers with Anti-Static Design
Blower impellers are coated with anti-static PTFE materials and equipped with conductive grounding paths to dissipate static charges. Computational fluid dynamics (CFD) analysis is used to optimize airflow distribution and prevent localized gas accumulation.
This reduces electrostatic discharge risks while maintaining uniform temperature fields.

Reinforced Structural Chamber Design
Chamber enclosures are engineered using finite element analysis (FEA) to withstand internal overpressure events caused by cell venting or rupture. Structural resistance is typically designed for internal pressure loads exceeding 50–100 kPa.
This ensures containment and prevents catastrophic structural failure.

2. Active Safety Systems Based on Early Hazard Detection

Active safety systems are designed to detect abnormal conditions before ignition or explosion occurs.

Multi-Gas Monitoring
Sensors detect CO, hydrogen, and volatile organic compounds at ppm-level sensitivity with response times typically below 2–5 seconds.

Optical Smoke Detection
Laser-based scattering detection enables early identification of electrolyte vapor and micro-particles before visible smoke forms.

Spark and Flame Detection
UV/IR dual-spectrum sensors differentiate real ignition events from background radiation, reducing false alarms.

When detection thresholds are exceeded, automated responses may include:

 Emergency exhaust ventilation

 Fire suppression activation

 Test circuit power shutdown

 Audible and visual alarms

This multi-layer response strategy significantly reduces escalation probability during failure events.

3. Compliance-Driven Engineering Design

Effective safety design is derived from specific technical clauses in international standards rather than simple compliance labeling.

Examples include:

 UN 38.3 altitude simulation informing chamber pressure regulation design

 IEC 62281 transport shock requirements guiding vibration-resistant structures

 UL 2580 thermal abuse tests driving heater redundancy and sensor backup design

Standards are translated into measurable engineering targets to ensure practical safety performance.

Conclusion

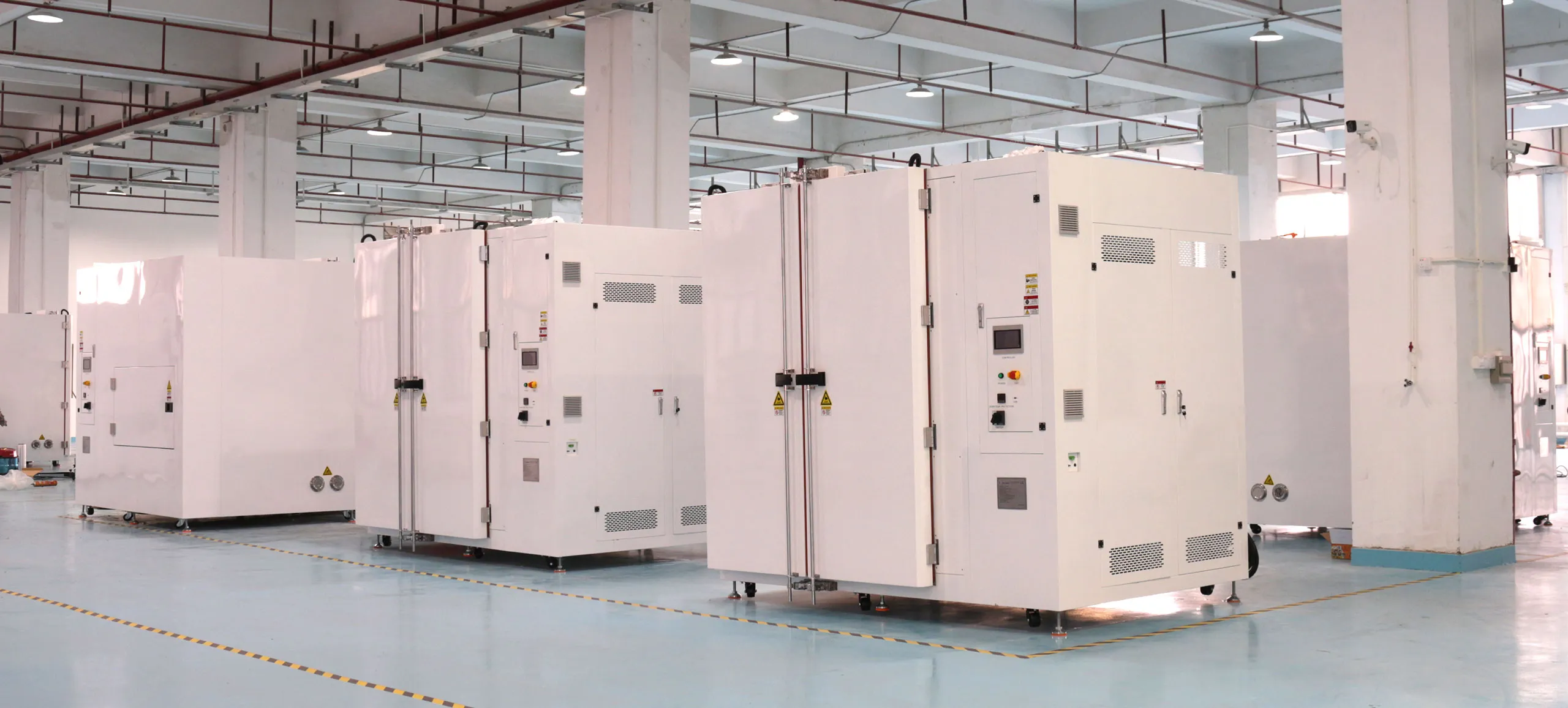

A high-reliability battery testing chamber functions as a controlled risk-management system integrating:

 Ignition source elimination

 Gas dispersion control

 Early hazard detection

 Structural containment

 Standards-based validation

The engineering objective is not only regulatory compliance but the reduction of risk probability under worst-case failure scenarios.
